Lab 08 - Manage Virtual Machines (Task5~Task6)_Cloudshell(用powershell跟bash方式)



Task 5: Create a virtual machine using Azure PowerShell

Use the icon (top right) to launch a Cloud Shell session. Alternately, navigate directly to https://shell.azure.com.

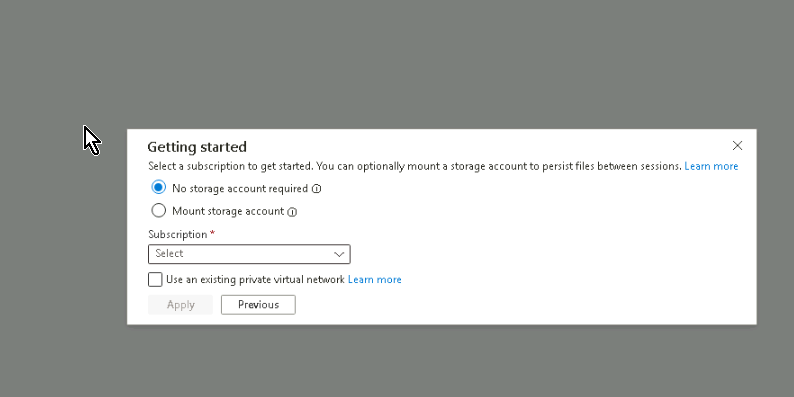

若直接網址列這樣訪問會跳出以下視窗

這邊在登入時候從右上角去點開也OK

選好按Apply

Be sure to select PowerShell. If necessary, configure the shell storage.

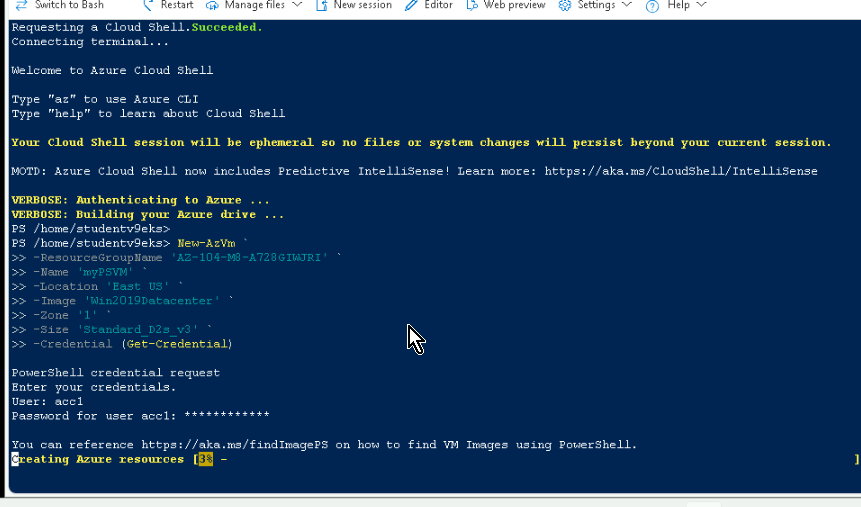

Run the following command to create a virtual machine. When prompted, provide a username and password for the VM. While you wait check out the New-AzVM command reference for all the parameters associated with creating a virtual machine.

New-AzVm `

-ResourceGroupName 'AZ-104-M8-A728GIWJRI' `

-Name 'myPSVM' `

-Location 'East US' `

-Image 'Win2019Datacenter' `

-Zone '1' `

-Size 'Standard_D2s_v3' `

-Credential (Get-Credential)

Once the command completes, use Get-AzVM to list the virtual machines in your resource group.

Get-AzVM `

-ResourceGroupName 'AZ-104-M8-A728GIWJRI' `

-Status

Verify your new virtual machine is listed and the Status is Running.

Use Stop-AzVM to deallocate your virtual machine. Type Yes to confirm.

Stop-AzVM `

-ResourceGroupName 'AZ-104-M8-A728GIWJRI' `

-Name 'myPSVM'

Use Get-AzVM with the -Status parameter to verify the machine is deallocated.

When you use Azure to stop your virtual machine, the status is deallocated. This means that any non-static public IPs are released, and you stop paying for the VM’s compute costs.

Task 6: Create a virtual machine using the CLI

Use the icon (top right) to launch a Cloud Shell session. Alternately, navigate directly to https://shell.azure.com.

Be sure to select Bash. If necessary, configure the shell storage.

Run the following command to create a virtual machine. When prompted, provide a username and password for the VM. While you wait check out the az vm create command reference for all the parameters associated with creating a virtual machine.

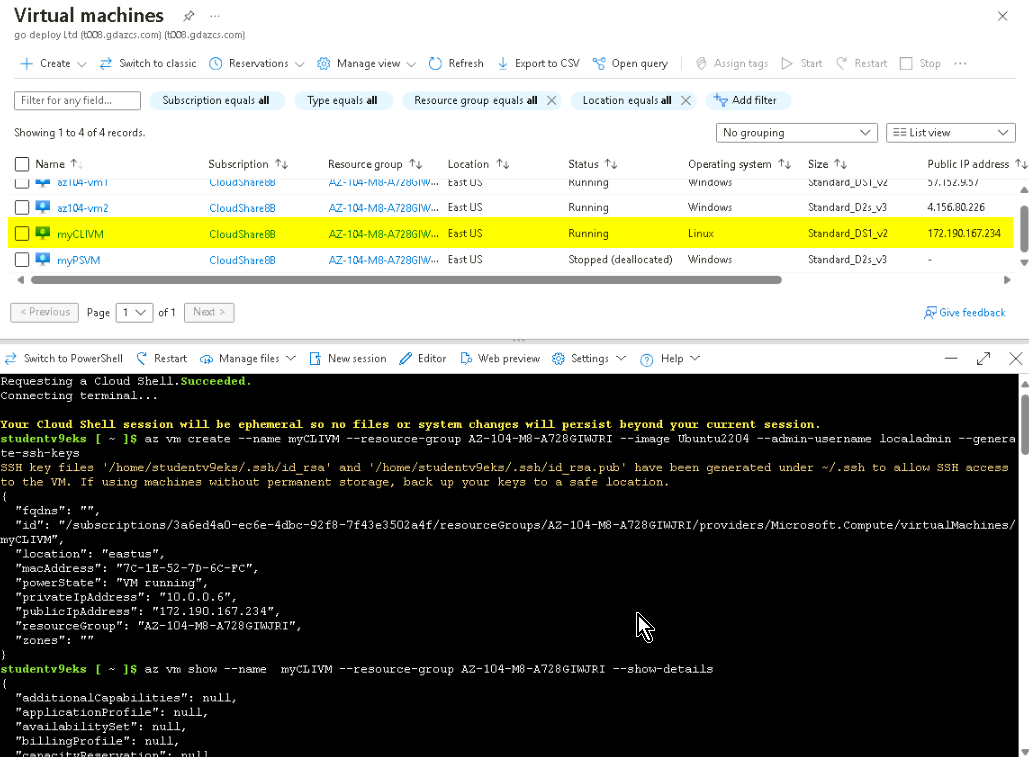

az vm create --name myCLIVM --resource-group AZ-104-M8-A728GIWJRI --image Ubuntu2204 --admin-username localadmin --generate-ssh-keys

Once the command completes, use az vm show to verify your machine was created.

Verify the powerState is VM Running.

az vm show --name  myCLIVM --resource-group AZ-104-M8-A728GIWJRI --show-details

Use az vm deallocate to deallocate your virtual machine. Type Yes to confirm.

az vm deallocate --resource-group AZ-104-M8-A728GIWJRI --name myCLIVM

Use az vm show to ensure the powerState is VM deallocated.
